3-in-1 Coding Technology
More cartridge selection, more ink solutions
HP
- Versatile 0.5-inch water/solvent/color ink solution
- High volume 420ml Bulk Ink Solution for low cost-per-print application
IUT
- Non-stitched 1-inch cartridge design for seamless large-format printing
- Available in water/solvent-based ink for primary & secondary package coding application
FUNAI
- Non-contact 10mm long distance printing capability
- High-adhesion solvent ink suitable for most of the non-porous substrates
- GMP cartridge with EU/Halah certified food-grade ink solution
Reliability and Stability
Industrial grade mechanical design, ensuring coding stability and reliability in both high & low-temperature working environment.
Unmatched Robustness
Robust capacitive touch screen with quick and accurate response, yet strong enough against accidental impacts and damages. Compatible with most medical and industrial gloves.
High Speed & High Resolution Coding
Print speed of 300m/min at 60 DPI*, meeting most high speed production requirement. ( cartridge dependent )
2-inch Print Height Expandability
2-inch high resolution print message using dual ANSER 1-inch cartridges, providing low cost alternative for case labeling.
Non-Stop Coding = Zero Downtime Cost
Parallel printhead design allows end users to replace cartridges without production intervention, achieving true zero downtime cost.

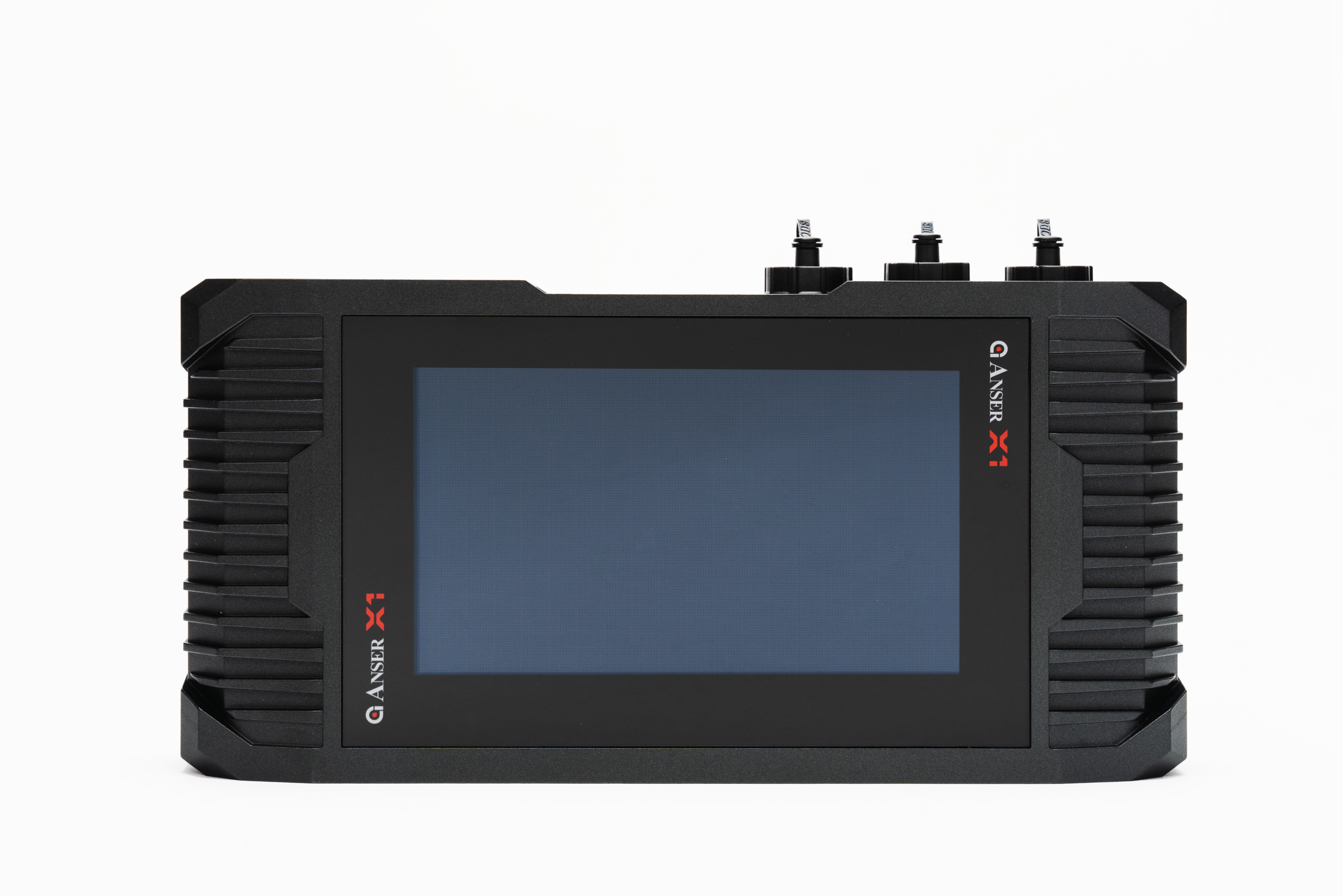

| X1 Controller Specifications | |||
| Display | 7” Color LCD Capacitive Touchscreen (800×480 px) (Compatible with most medical & industrial gloves) | I/O Ports | USB 2.0 connector x 2 RS-485 & RS-232 connector x 1 RJ-45 connector x 1 Digital I/O connector (1 IN & 5 OUT pins) Encoder x 1 Photocell x 1 |
| Maximum number of printhead | 2 | Power Input | AC 100V~240V, 50/60Hz (90Watt) |
| Printing Functions | Static Data: Text, Logo, Dynamic Data: String, Shift, Counter, Production Date, Expiration Date |
Operating Temp. | 0~40°C (32°F – 104°F) |
| Fonts & Size | TrueType Fonts | ||
| System Language (and input lang.) |
English, Spanish, German, French, Italian, Traditional Chinese. Simplified Chinese, Japanese, Korean, Russian, Portuguese, Turkish, Hungarian, Slovak, Czech, Swedish, Romanian, Serbian, Bulgarian, and Polish | Operating RH. | 0%~90%, Non-condensing |
| Barcode Type | EAN8, EAN13, EAN14, EAN128, UPCA, UPCE, CODE39, CODE128, ITF14 (SCC-14), NVE18 (SSCC-18), INTER25, CODABAR, PDF417, DATAMATRIX, QRCODE, GS1 (DATAMATRIX, DATABAR EXP, DATABAR, QRCODE), D’MATRIX 8×32, DUN14, Aztec Code | Dimensions & Weight | 291 (L) x 142 (W) x 52 (H) mm 2.12 Kg |
| Communication Protocols | TCP IP/UDP, Modbus TCP, and ANSER U2 Net protocol | IP Rating | IP66 housing |
